High-Performance Steel Wire Rod For Wire Drawing And Stainless
Steel Wire

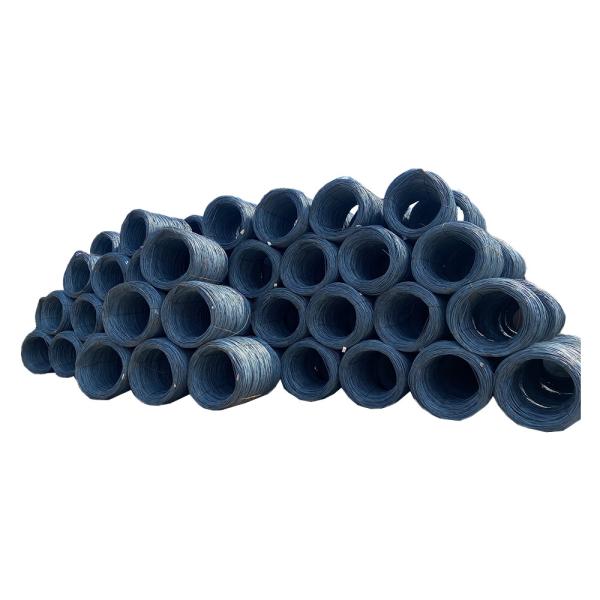

JUYIHENG Steel wire rod(s) is also called wire rod, which usually
refers to small-diameter round steel in a coil. The diameter of the
wire rod is in the range of 5-19mm (usually 6-9mm), and the lower
limit is the minimum size of the hot-rolled steel section. There
are many varieties of wire rods. Low carbon steel wire rods in
carbon steel wire rod(s) are commonly called soft wires, and medium
and high carbon steel wire rods are commonly called hard wires.
Wire rods are mainly used as blanks for wire drawing, and can also
be directly used as building materials and processed into
mechanical parts. Stainless steel wire rod(s) are used in the
manufacture of stainless steel wire, stainless steel spring steel
wire, stainless upset forging steel wire and steel wire for
stainless steel wire rope. With the advancement of production
technology, wire rods with square, hexagonal, fan-shaped and other
special-shaped sections have appeared; the upper limit of diameter
has been expanded to 38 mm; the weight of the coil has increased
from the original 40-60 kg to 3000 kg. Due to the development of a
new post-rolling heat treatment process, the iron oxide scale on
the surface of the wire rod has been significantly thinned, and the
structure and performance have also been greatly improved.
| Product Name | wire rod |
| Grade | SAE1006-1080,WA1010,Q195,SWRH32-37,SWRH42A-77A,SWRH42B-82B
HRB400,HRB500,B500B,GR60,500N |
| Standard | GB standard,ASTM standard |
| Wire Gauge | 5.5mm-34mm |
| Dia tolerance | +/-0.3mm |
| Process | Hot rolled |
| Application | Mechanical&manufacture,Steel
structure,Shipbuilding,Bridging,Automobile chassis |
| Lead Time | A.7 days if this goods is stock goods.B.20 days if this goods will
be produced after order |
| Payment Terms | 30% T/T in advance as deposit,70% balance against the B/L copy or
100% irrevocable L/C at sight |
| Remark | Specific requirement of alloy grade,temper or specification can be
discussed at your request |
| OD(mm) | Area(mm²) | Weight(kg/m) | L(m) | Weight(kg/s) |
| Φ5.5 | 23.8 | 0.187 | 1000 | 187 |
| Φ6 | 28.3 | 0.222 | 1000 | 222 |
| Φ6.5 | 33.2 | 0.26 | 1000 | 260 |
| Φ7 | 38.5 | 0.302 | 1000 | 302 |
| Φ7.5 | 44.2 | 0.347 | 1000 | 347 |
| Φ8 | 50.3 | 0.395 | 1000 | 395 |
| Φ8.5 | 56.7 | 0.445 | 1000 | 445 |
| Φ9 | 63.6 | 0.499 | 1000 | 499 |
| Φ9.5 | 70.9 | 0.556 | 1000 | 556 |
| Φ10 | 78.5 | 0.617 | 1000 | 617 |
| Φ10.5 | 86.6 | 0.69 | 1000 | 690 |
| Φ11 | 95 | 0.746 | 1000 | 746 |
| Φ11.5 | 104 | 0.815 | 1000 | 815 |
| Φ12 | 113 | 0.888 | 1000 | 888 |
| Φ12.5 | 123 | 0.963 | 1000 | 963 |
| Φ13 | 133 | 1.04 | 1000 | 1040 |
| Φ13.5 | 143 | 1.12 | 1000 | 1120 |
| Φ14 | 154 | 1.21 | 1000 | 1210 |
| Φ14.5 | 165 | 1.3 | 1000 | 1300 |
| Φ15 | 177 | 1.39 | 1000 | 1390 |
| Φ15.5 | 189 | 1.48 | 1000 | 1480 |
| Φ16 | 201 | 1.58 | 1000 | 1580 |
| Φ17 | 227 | 1.78 | 1000 | 1780 |
| Φ18 | 254 | 2 | 1000 | 2000 |
| Φ19 | 284 | 2.23 | 1000 | 2230 |
Production equipment
Packageand Transport
Standard export package,suit for all kinds of transport,or as
required.Also, we can customize the packaging according to the
needs of customers.

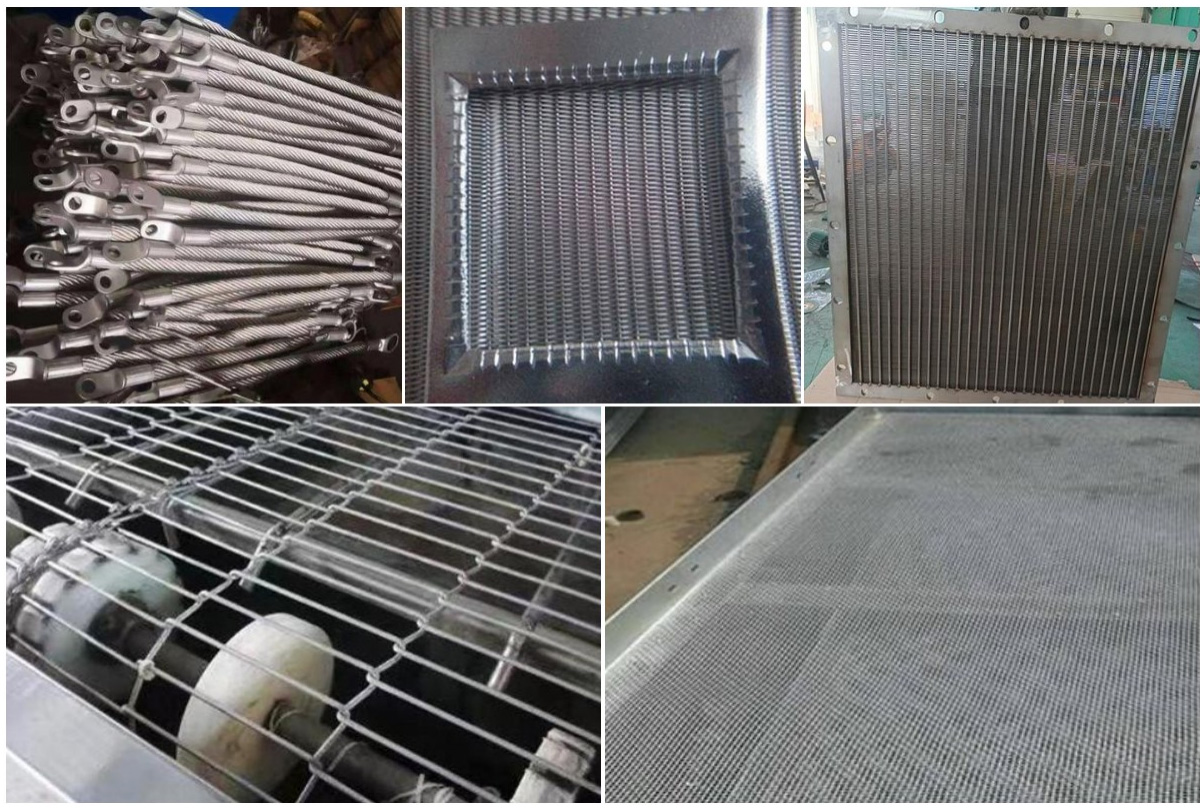

Product application
FAQ
Q1: How many countries have you exported?
A:Our products are widely used more than 60 countries already mainly
from Indonesia, Thailand, UAE, Iran, Saudi Arabia, Russia,
Australia, Germany, UK, Moldova, Italy, Turkey, Chile, Uruguay,
Paraguay, Mexico, Brazil, Argentina, Peru, America, Canada, etc.
Q2: Could you produce according to the samples?
A: Yes, we can customer-made by your samples or technique drawings,
we can build the mold and fixtures.
Q3: Could youprovide the compliment samples?
A:Yes, we would like to supply the samples before order if the
samples from stock, it will be free if the samples from new
production, we will charge some reasonable cost, but this amount
will be deducted from your first order invoice.
Q4: How could you guarantee your products quality?
A:Each piece of products is manufactured by certified workshops,
inspected by us piece by piece according to national QA/QC
standard. We also could issue the warranty to customer to guarantee
the quality.
Q5: What are the advantages of your company?
A:We have many professionals, technical personnel, more competitive
prices and best after-dales service than other metal materials
companies.
